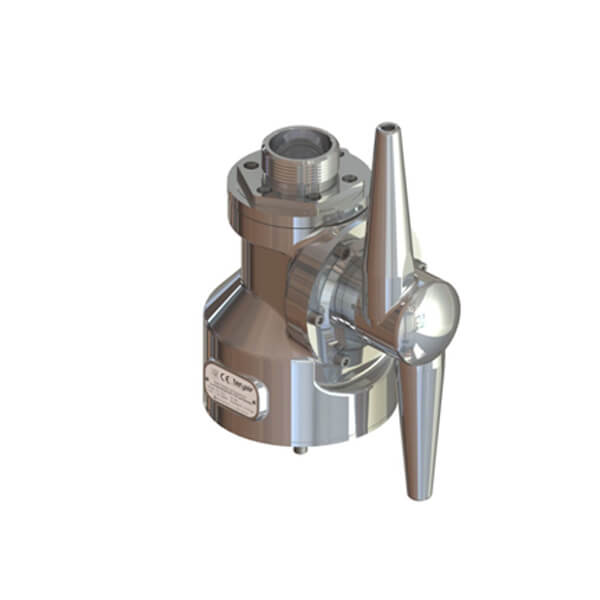

These are twin nozzle tank washing machines. They have a Stainless Steel 316L con- struction combined with PEEK gears for durability and chemical resistivity.
The two opposing nozzles continuously rotate in two axes and complete a complete cleaning cycyle in 20 minutes
Suitable for use with various cleaning media including water, crude oil and cleaning chemicals, both hot and cold. Its easily repairable on site and teryair spares are avail- able widely.
| Maximum Discharge | 27m3/hr, 450 litres/min |
| Maximum Jet Length | 31 mtrs, 100feet |
| Operating Pressure range | 3 to 12 Bar |
| Machine Weight | 7 Kgs, 15.4lbs |
| Temperature upto | 90 deg C |
| Cycle time | 20 mins (with std 8mm nozzle and 8 Bar supply pressure) |
| Portable Thread detail | 1-1/2 inch BSP or 1-1/2 NPT (pl specify while ordering) |
|
Fixed Flange Detail (opt) |
5” OD X 3.88” PCD X 0.62” Bolt Hole DIa, (127mm, 98.5, 15.7mm resp) as ANSI B16.5 Class #150 |

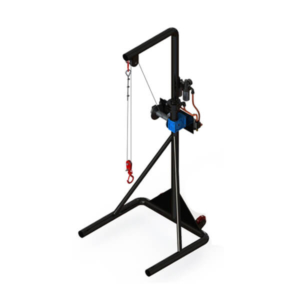

MUCKING WINCH
